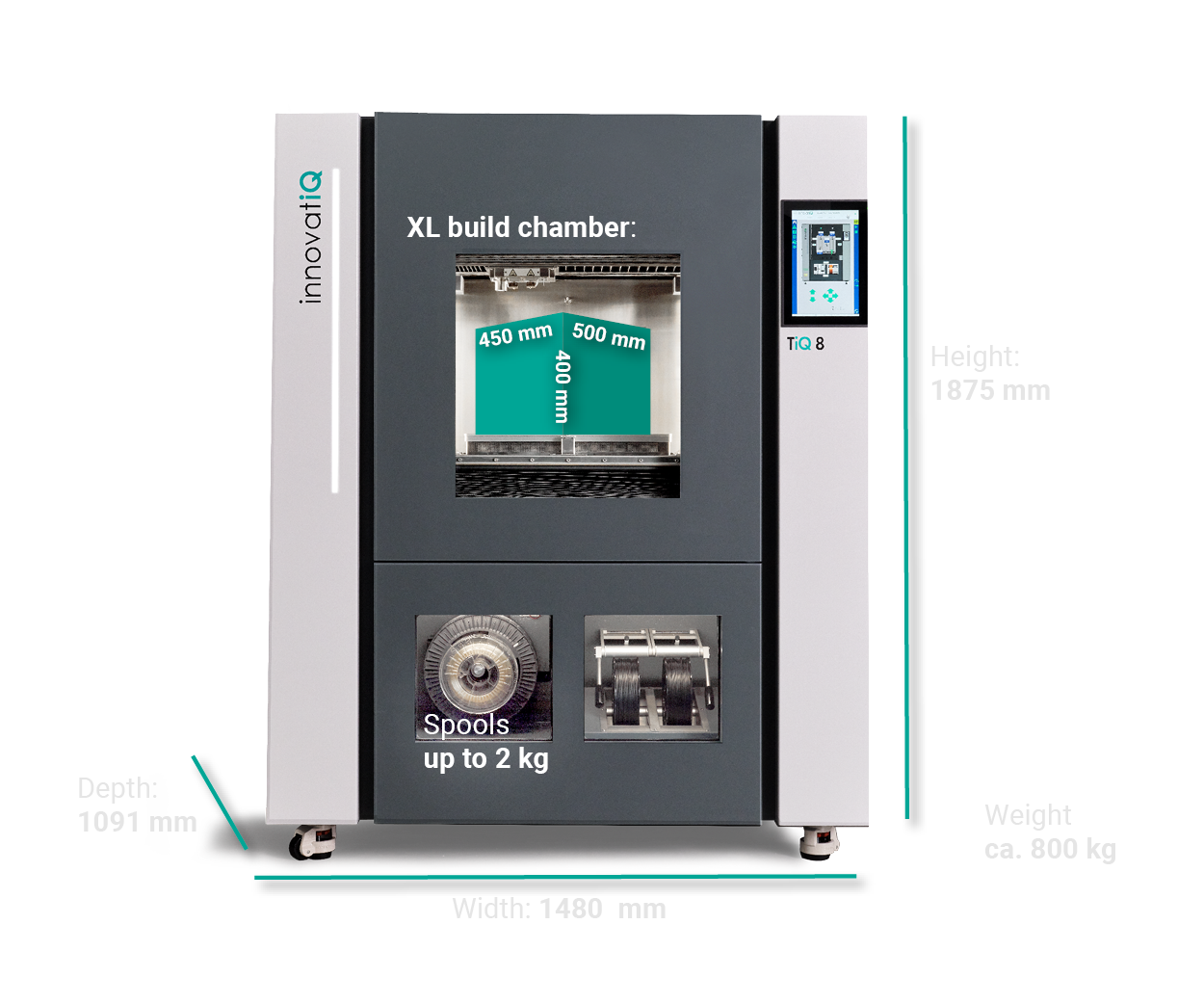

TiQ 8 - HIGH-TEMPERATURE PRINTING IN LARGE FORMAT

The welded metal frame and the painted metal housing of the innovatiQ TiQ 8 form the solid basis of the appliance. The viewing doors of the construction chamber and the temperature-controlled material compartments are made of solid, shatter-proof safety glass.

The precise workmanship of the housing, components and add-on parts form the basis for the stable and low-vibration continuous operation of the printer.

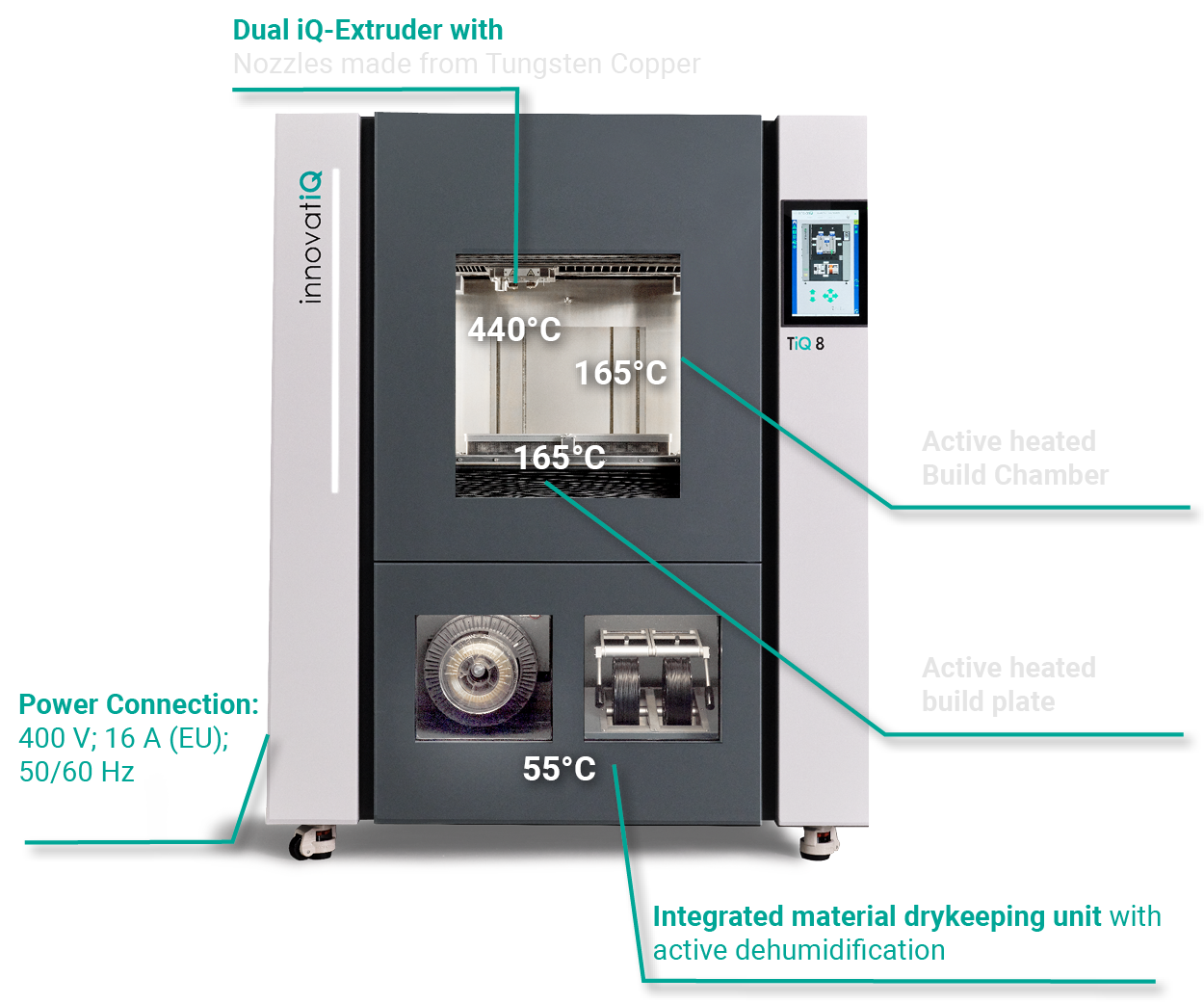

The TiQ 8 has an actively heated process chamber that can be operated at temperatures of up to 165 °C as required. A sophisticated circulation system ensures stable and homogeneous temperatures throughout the entire build chamber.

The actively heated build chamber is one of the components that make the TiQ 8 ideal for processing high-temperature materials.

The active heating of the vacuum printing bed in the TiQ 8 ensures that the surface of the printing bed is heated evenly to up to 165 °C. The applied filament adheres optimally and does not warp during the entire printing process. The applied filament adheres optimally and does not warp during the entire printing process.

Especially when printing with high-temperature materials, this, in combination with build chamber temperature control, makes a decisive contribution to ensuring that components can be produced reliably, precisely and with consistently high quality.

The technology developed in-house by innovatiQ in the dual print head of the TiQ 8 ensures maximum process reliability and at the same time guarantees the processing of different materials in one printing process at temperatures of up to 440° C.

The strengths of innovatiQ's proprietary print head technology come into their own thanks to the specially developed nozzles (special tungsten/copper alloy) when processing fiber-reinforced, abrasive materials.

GestiQ-Pro - the intuitive CNC control system from innovatiQ - provides you with consistent support during the production process, clearly displays the current print values and simplifies the daily operation of the 3D printing system.

The clear menu navigation on the 12" display shows you all applications and data at a glance and helps you step by step to execute a specific function.

The highest component quality requires optimum storage and maximum possible dry keeping during the printing process. The integrated material drying unit in the TiQ 8 ensures both and works completely autonomously.

The material is stored at up to 55°C and actively and continuously dehumidified.

The material is transported bilinearly: one conveyor unit transports the filament in the material feed and another in the print head. This is sensor-monitored and guarantees an even and optimal supply of filament.

SmartTrack controls the material feed with sensor support and automatically adjusts the feed and print speed to the current filament requirement, making a decisive contribution to process reliability and print quality.

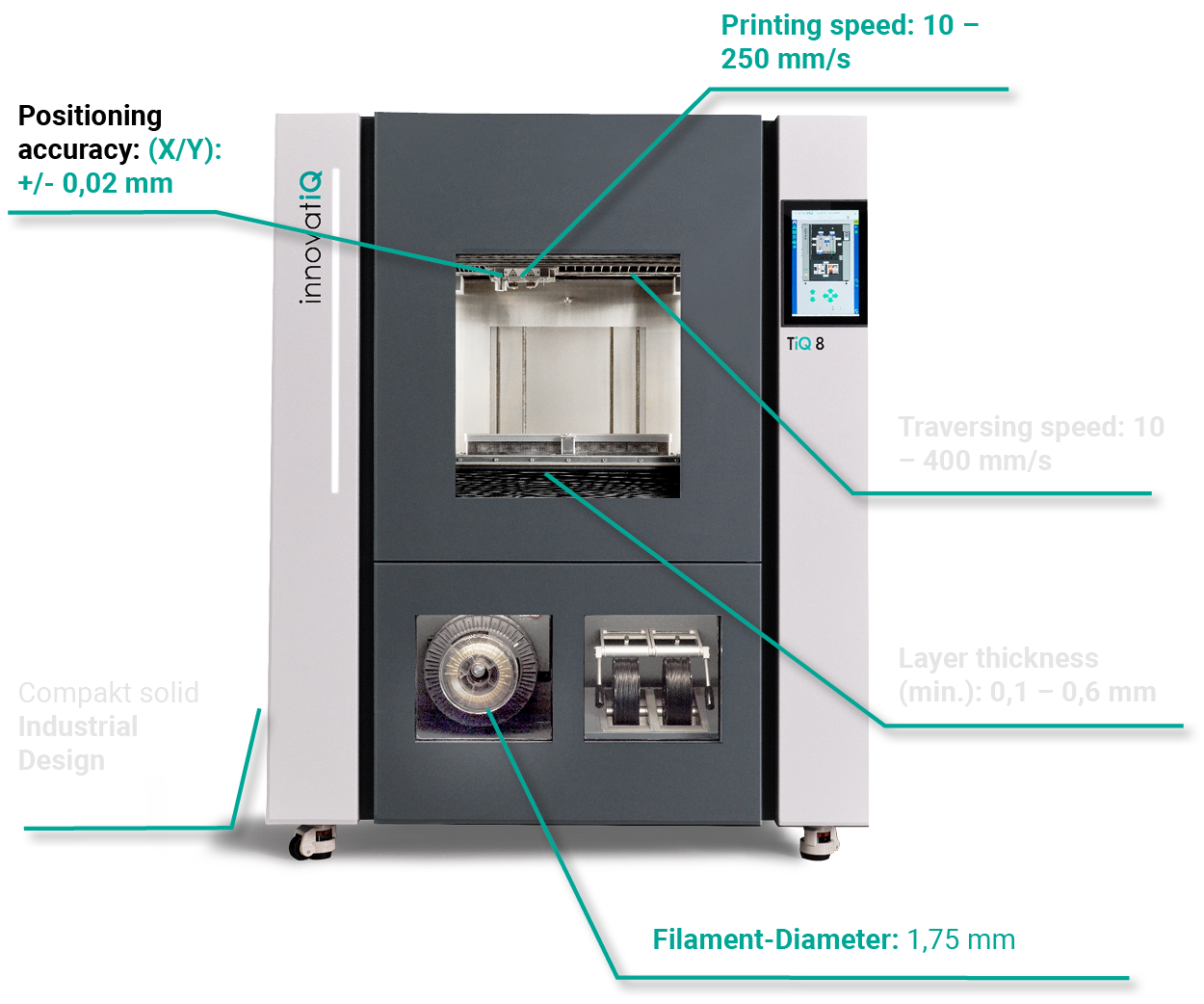

Renowned drive technology components, powerful drive motors, precisely milled drive elements and solid metal axles ensure precise and permanently reliable printing processes.

Thanks to the use of solid industrial components, mostly made of metal, the entire drive train guarantees low-maintenance and trouble-free operation, even in continuous operation.

Precise wiring and high-quality components with simultaneous safety: the electrical connections and circuits are, for example, completely protected by RCDs.

Only tried and tested industrial components are used for the electronic control system.
